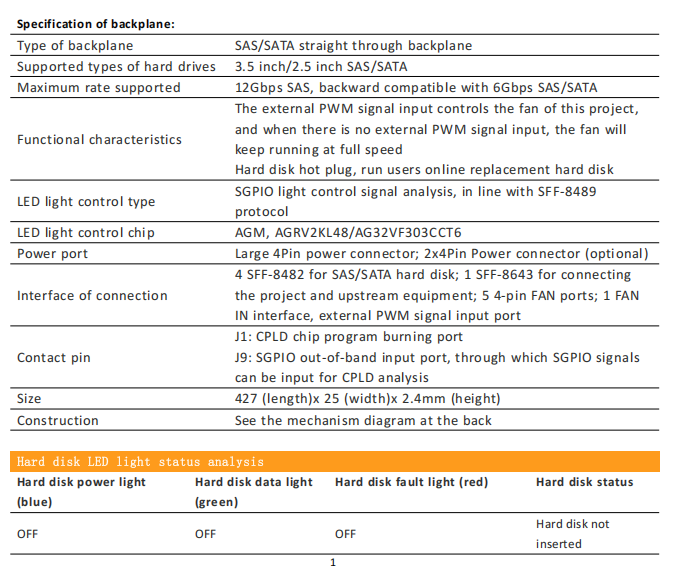

CEACENT CBP-6DR204S is a 4-disk pass-through backplane for 1/2U 4-disk customizable storage server launched by Shenzhen Jiahua Company. The size of the product is 427 x 25 x 2.4mm, and it is made of high TG170 plate to ensure stable operation in high temperature environment. Often used in small database, enterprise informatization, medium database, enterprise informatization, IDC/ISP/ICP/ASP and other network, information operators business applications.
The built-in straight-through backplane can be connected to a maximum of 4*SAS/SATA disk connection scheme is optional, providing a large 4PIN and 8PIN two kinds of power supply
interface to choose from, 4 SFF-8482 for connecting to SAS/SATA hard disk; 1 SFF-8643 for connecting this project to upstream devices. Secondly, an AGM CPLD chip was embedded in the backplane, which could support SGPIO signal interpretation and monitor the working state of the hard disk in real time. The lamp control management chip is used to feedback the use of the LED status indicator in time.
