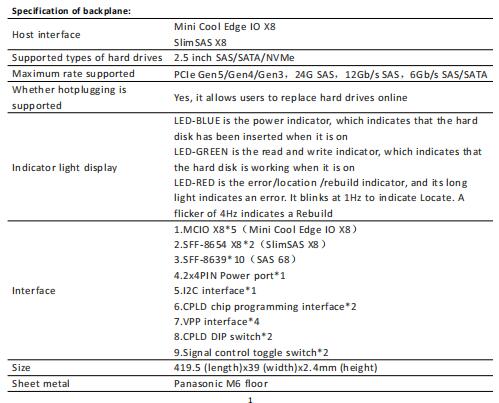

CEACENT CBP-9DT110M is a 10-disk pass-through hybri backplane for customizable storage servers launched by Shenzhen Jiahua Company. The size of the product is 419.5 x 39 x 2.4mm, and it is made of Panasoni M6 8-layer plate to ensure stable operation in high temperature environment. Often used in small database, enterprise informatization, medium database, enterprise informatization, IDC/ISP/ICP/ASP and other network, information operators business applications.
The built-in straight-through backplane can connect up to 8*NVMe+2*SAS/SATA or 10*SAS/SATA disk connection solution is optional, provides ATX12V 8Pin power interface, 4 MCIO 8X for connecting PCIe signals; Three SlimSAS 4I are used to connect SAS/SATA signals. Secondly, it supports hard disk hotplugging, and users can replace hard disks online. Support SGPIO light control signal analysis, in line with SFF-8485 protocol; Support VPP lamp control signal analysis, in line with Intel VPP protocol. Support Intel motherboard, Broadcom, Microchip series related HBA, RAID card.
