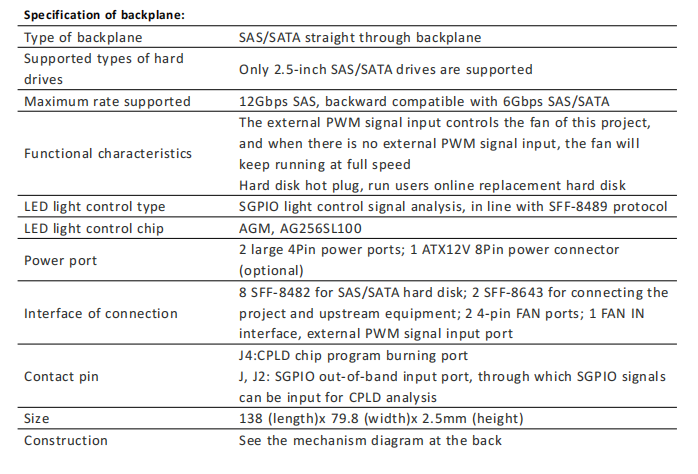

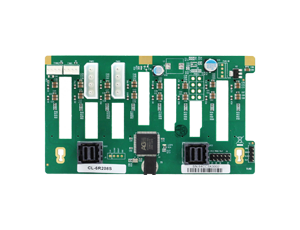

CEACENT CBP-6DR208S/2 is an 8-disk pass-through backplane for 2U 8-disk customizable storage server launched by Shenzhen Jiahua Company. The size of the product is 138 x 79.8 x 2.5mm, and the high-speed plate is used to ensure stable operation in high temperature environment.
The built-in straight-through backplane can connect up to 8*SAS/SATA disks. The product provides 2 large 4PIN power supply ports and 1 ATX12V 8Pin power supply ports for customer choice. 8 SFF-8482 are used to connect SAS/SATA disks. 2 SFF-8643 for connecting this project and upstream devices. Secondly, an AGM CPLD chip was embedded in the backplane, which could support SGPIO signal interpretation and monitor the working state of the hard disk in real time. The lamp control management chip is used to feedback the use of the LED status indicator in time.
