CEACENT CNS44PE16 is a NVMe U.2 (sff8639) to PCI-e 3.0 * 16, SAS 4.0 hard drive adapter card independently developed by Shenzhen Xi Microelectronics Co., Ltd. It does not require power to NVMe SSD, and BIOS supports PCLs slot bifurcation. The design of this hard drive adapter card is mainly used to address storage bottlenecks in servers and high-end desktop computers. It adopts the BCM PLX8748 chip solution, which comes with a PCIE splitting protocol and does not require motherboard splitting. It comes with a PCIE channel splitting control button and can be easily split into two modes: X8X8 or X4X4X4X4. It is also suitable for PCIe expansion in ALEO projects; Supports up to 8 NVME HDD (SSD) extensions, supports hot swapping function, makes it more convenient and concise to manage your workstation, and supports NVMe hard drives that comply with standard protocols such as Intel;
CNS44PE16 is suitable for storage systems such as graphics workstations, servers, and communication platforms. The four ports can expand up to 8 U2 (sff8639 hard drives) through a 2 * 8639 SlimSAS interface. Each U2 SSD channel has a dedicated PCIe 3.0 x4 (32Gb/s) bandwidth, and the transmission performance is 10 times faster than SATA; Supports SAS4.0 interface, with a maximum transmission speed of 2400Mbyte/s; Improved the speed of NVMe reuse, making your storage solution more convenient and efficient.
Instructions for using CEACENT CNS44PE16:
1 PCIe 3.0 x16 total bandwidth;
2 Supports hot swapping function;
3. Four ports are extended with 8 U2 NVMe channels (providing dedicated PCIe 3.0 X4 bandwidth for each port) through SlimSAS-2 * 8639;
4 The port supports SAS4.0 interface, with a maximum transmission speed of 2400Mbyte/s;

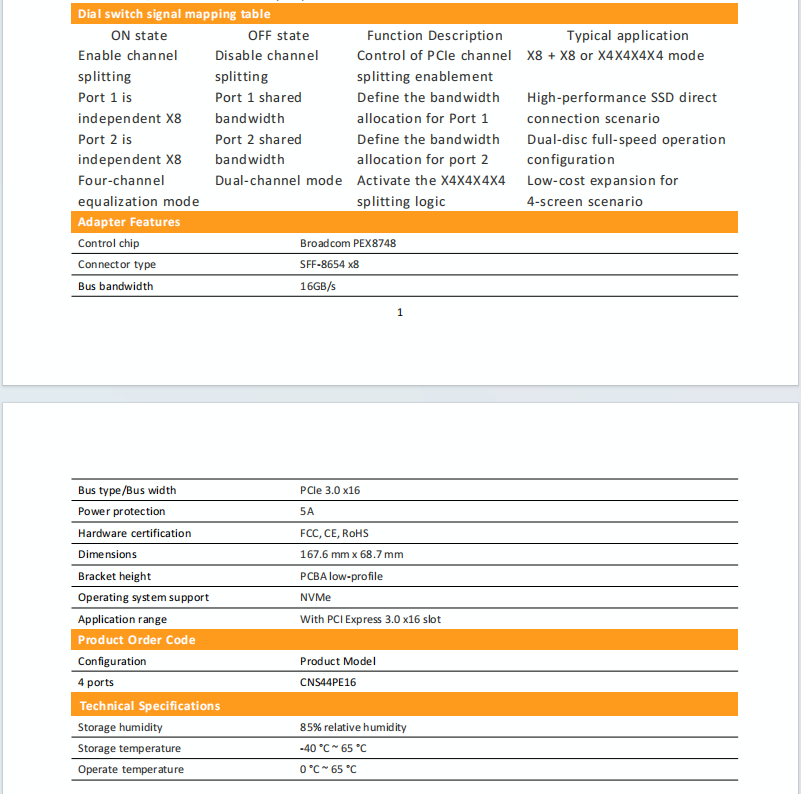

5 PCIE channel split control button on the board, easily split into two modes: X8X8 or X4X4X4X4, both suitable for PCIe expansion in ALEO projects
6. BIOS supports PCLs slot bifurcation
7. Adopting BCM PLX8748 main control scheme;
8. Provide high-performance storage solutions for NVMe SSDs.
9. There are no requirements for operating system or compatibility with motherboard models. Simply having a PCIe slot on the motherboard allows for easy expansion.
For more product information, please contact our online customer service.
